The legendary JHF1 in a smaller housing.Â

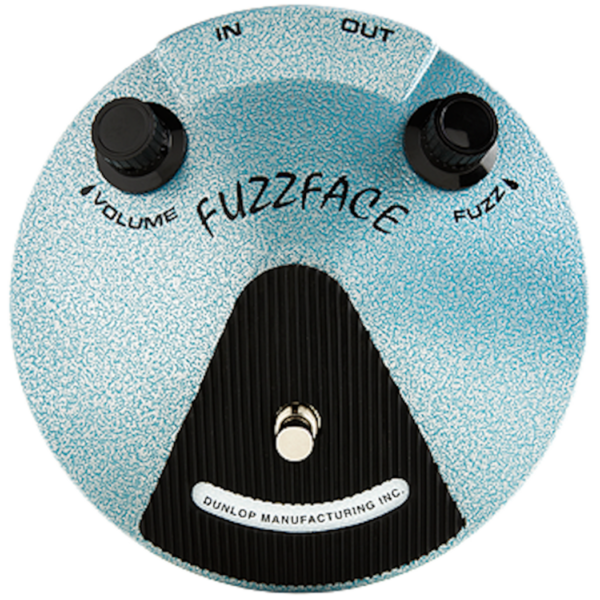

In order to create their JHF1 Jimi Hendrix Fuzz Face Distortion, Dunlop closely examined a selection of original Dallas Arbiter Fuzz Face pedals. The JHF1 was an instant hit, and now Dunlop offers the very same circuit in a smaller housing, calling it the FFM3 Jimi Hendrix Fuzz Face Mini Distortion. The FFM3, just like its big brother, features an all-analogue, hand-wired circuit which evolves around the legendary BC108 silicon transistor.
While the JHF1 was designed for full authenticity inside and out, the mini version kept things old school on the inside while offering much needed “newer” features like LED indication, AC power jack and a battery door. How authentic is the sound of FFM3 you ask? Make sure to compare it on the player with the old original 1969 Dallas Arbiter Fuzz Face found on the website.
| Manufacturer | Dunlop Electronics |
| Series | Authentic Hendrix |
| Made In | USA |
| FX | Fuzz |
| Type | Pedal |
| Jacks mounted on | Top |
| Bypass | True Bypass |
| Battery? | Yes |
| Voltage | 9 |
| Polarity | Center Negative |
| Circuit | Analog |
| Tube equipped? | No |
| Weight (in kg) | 0.23 |
| Based on famous model? | Dunlop Electronics JHF-1 |
| Width (in cm) | 8.9 |
| Height (in cm) | 5 |
| Depth (in cm) | 8.9 |
| GTIN 14 | 00710137066533 |
